TP9500

1.4.3 inch LCD
2. multi-language:Chinese,English,French,Spanish,Portuguese
3. camera focus range: 15-80mm,
4. 1m. 3m. 5m Cable Optional.

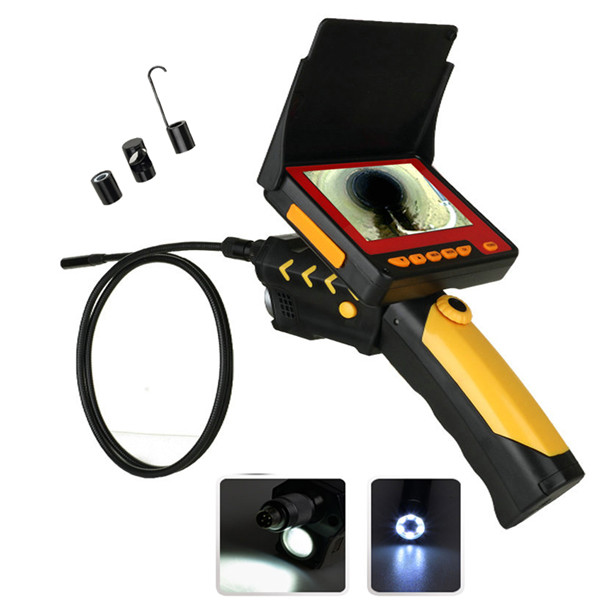

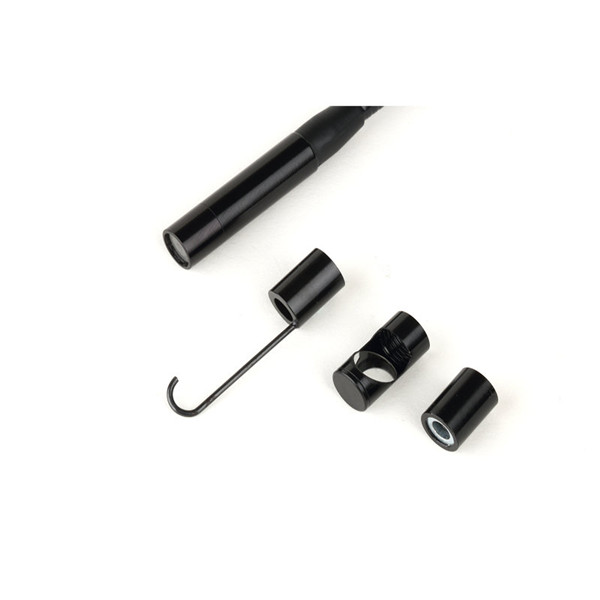

5. Optional accessories： Hook, Magnet, side-view mirror:

Products Inquiry

Product Name * :

Email * :

Name :

Tel :

Message :

Validatecode * :

Product Details

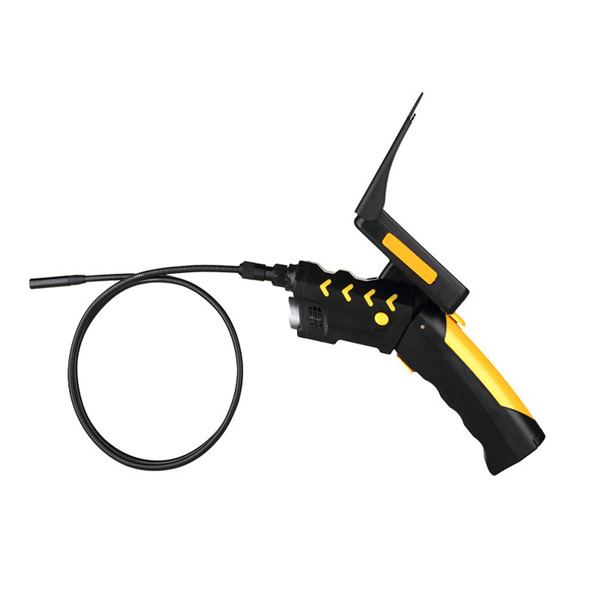

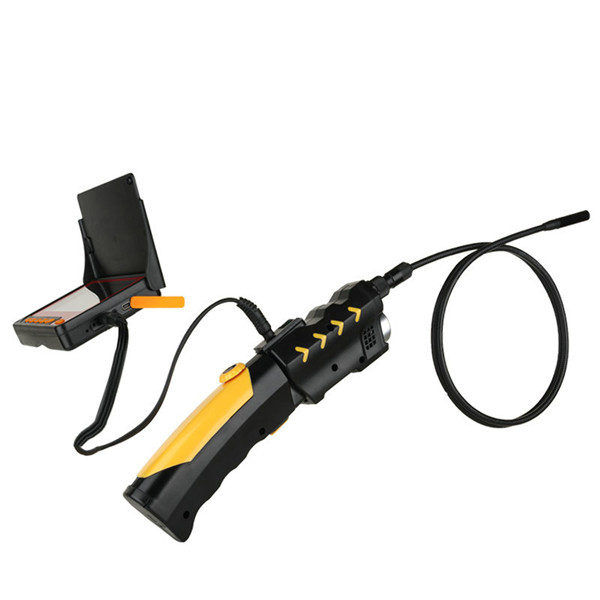

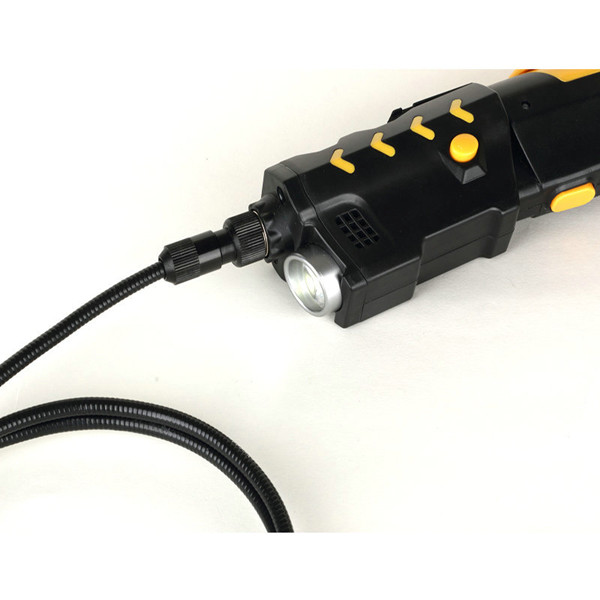

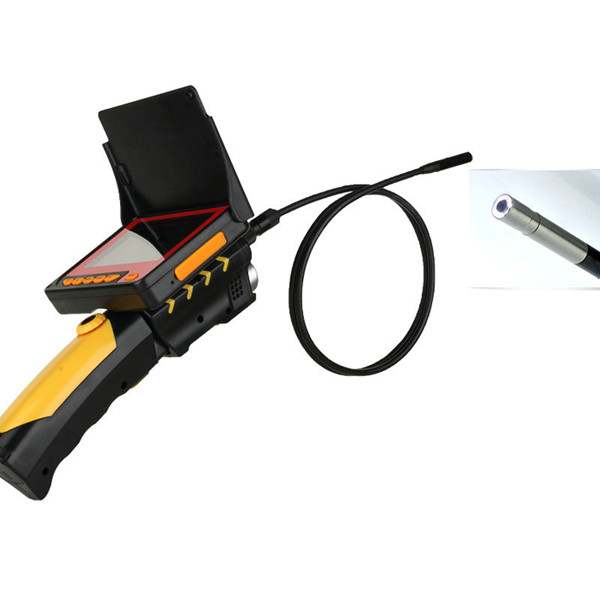

This pipe inspection camera system is a cost-effective portable device designed to deliver high quality video images for a wide range of applications including; sewers, building ducts/piping, wells and power plants. The camera head itself contains 6 white LED lights to illuminate the inspection area with a flexible spring-coiled joint to easily navigate corners.

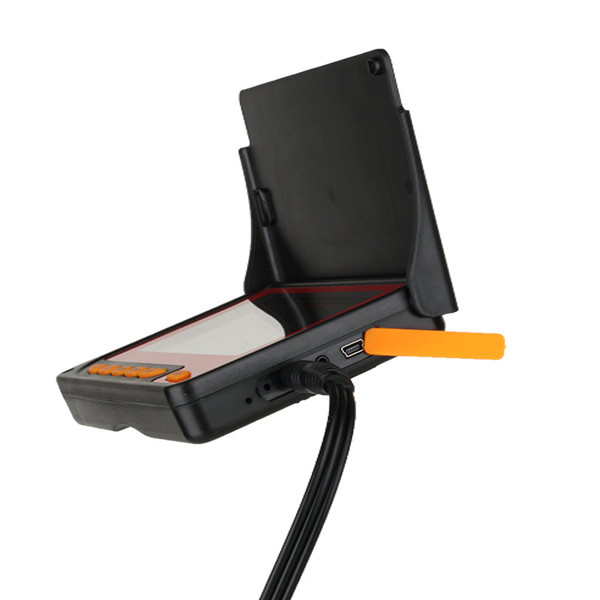

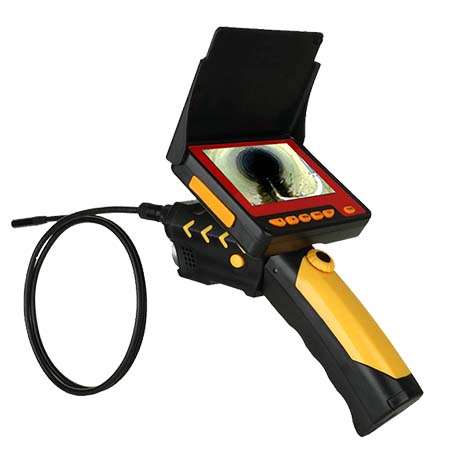

The monitor and additional controls are built into a compact, waterproof, lightweight plastic case making it easy to transport.The 4.3" TFT LCD displays a crisp live color image,with an adjustable sun hood for outdoor inspections.

This product is suitable to inspect the pipeline, sewer, air duct, tank, underwater and others dark environment, check the internal cracks, corrosion, weld, plugs and other unusual circumstance. It has been widely used in detection fields such as municipal pipelines, electricity, telecommunications, field investigations and disaster rescue.

Features:

1. Viewing the narrow space.

HD camera, 0.3 million pixel,lens and flexible are waterproof (The machine body is not waterproof)

3. The image can be rotated,4X zoom function;

4. 3.5 inch screen can display the image directly;

5. The brightness of LED can be adjustable;

6. Precision and Portable.

7. Take photo,with record function.

Applications:

1,Automotive/Diesel Repair and Maintenance

2,Water-supply pipe

3,Air-conditioner pipe

4,Cable pipe

5,Pipeline vacuum system

6,Buildings

7,Rescue work in the narrow space

8,Science Education

9,Outdoor Exploration

10,Check the position which can’t see or touch

Specification:

Item	Parameter
Monitor	4.3in. LCD
LCD work voltage	6V
Menu languages	multi-language
Battery working time	4-5 hours
Diameter	7.6mm
Language	Chinese,English,French,Spanish,Portuguese
Resolution	320*240pixels
LED	6pcs White LED
Focus range	15-80MM
camera diameter	8.5MM
Angle	60 degrees
flexible tube length	1 M 3M 5M
Camera picture	color
Monitor image	color
Resolution	High Definition
camera voltage	3.3V
Work Temperature	-10--50 degree
Storage Temperature	-20--60 degree
Size	31025474MM

Packing List

1. Color box

2. LCD Display

3 .Camera

4 .Handle

5 .Cable
