721C4D-3V

7" TFT LCD
This package includes 3 Indoor Monitor + 1 Outdoor Camera
Products Inquiry
Click Refresh Verification Code

Product Details

This package includes 3 Indoor Monitor + 1 Outdoor Camera
RFID cards supported
Dual-way audio communication
Infrared night vision supported
Hands-free intercom
Electronically unlocking control
24 kinds of polyphonic chord ringtones

Technical Information:
Indoor Monitor
Screen : 7" TFT LCD (16 : 9)
Resolution : 800 x 480 pixels
Effective Distance :
- up to 150m (between indoor and outdoor unit)
- up to 40m (between indoor and extra indoor unit)
Operating Temperature : -10°C ~ 50°C
Power Supply :
- Input : AC 100~240V, 0.5A
- Output : DC 15V, 1.2A
Dimensions :
- Approx. 224 (W) x 136 (H) x 20 (D) mm
- Approx. 8-7/8" (W) x 5-3/8" (H) x 3/4" (D) inch
Installation Method : Wall-mounted

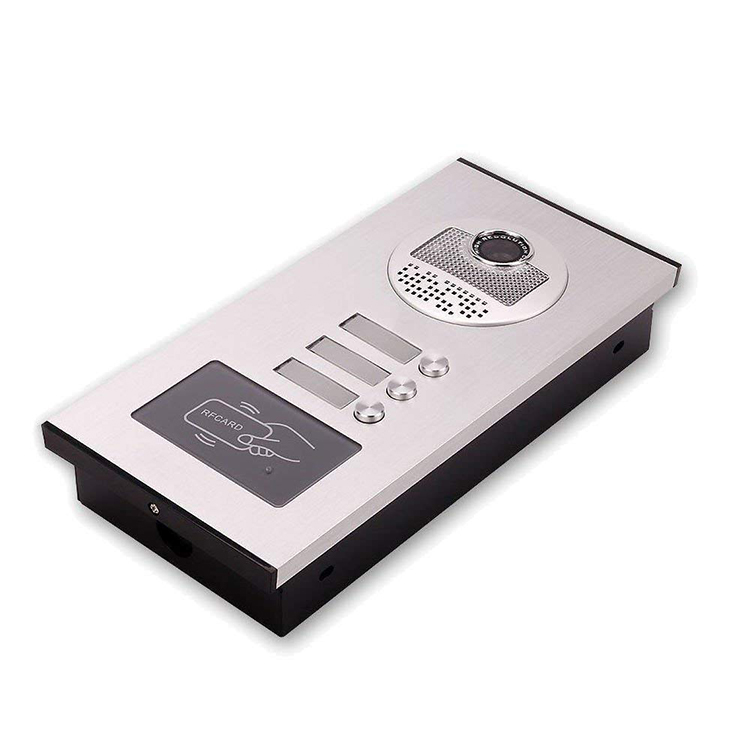

Outdoor Camera
Image Sensor : 1/3" CMOS
Resolution : 600TVL
Focal Length : 3.6mm
IR LED : 5 pcs, 10 Lux
Operating Tempreture : -10°C ~ 50°C
Dimensions?: Approx. 265 (L) x 128 (W) x 46 (H) mm
Power Supply : DC 15V
Installation Method : Embedded


Package includes:
3 x Wired 7" TFT Color Video Door Phone
1 x Outdoor Camera with RFID Cards
1 x Access Control Power Supply
1 x Set of Connection Cables
1 x Installation Kit
1 x User Manual
