1.Screen: 7" TFT
2.Resolution: 960 * 480
3.Camera: 1/3" CMOS 1000 TV Line
4.Camera lens: 3.6mm
5.Camera viewing angle: 92 degrees
Products Inquiry
Click Refresh Verification Code

Product Details

The Video Door Phone System has a large screen and provides a beautiful vision and safe feeling with a very simple installation and usage. High quality Video and Audio transmission, Built-in Infrared Light for Night Vision.It can be widely used inVilla, Office, Hotel and Other place needs Intercom . It contains 1 outdoor unit and 1 indoor monitor. With this Door phone Kit, you do not worry about the home security , it will add more convenience in your busy everyday life.
One-in-one peephole video with door bell,Hands free video door phone

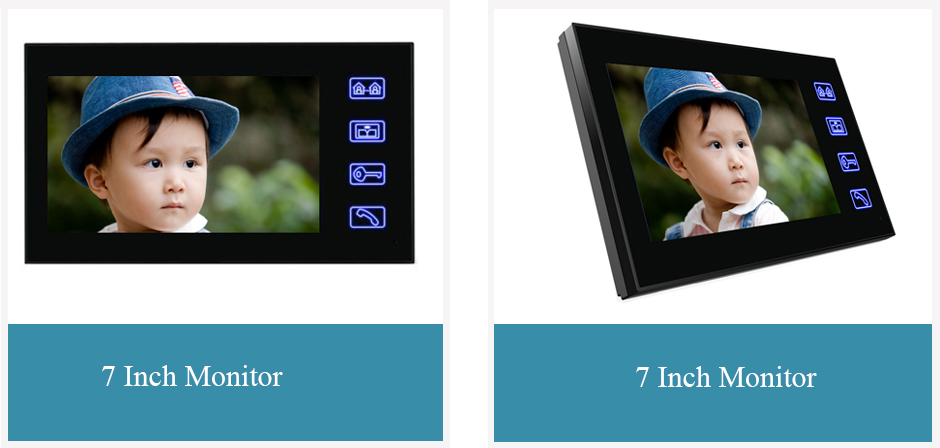

7" color monitor with ultra-slim design, nice and luxurious,It is easy to install by yourself
Monitor the outside condition by pressing the key,mage brightness, color and volume can be adjusted
Supporting embedded and hanging installation,It provides an extra security and convenience for you and your family
7" color TFT LCD with sensitivity touch panel. No radiation, low power consumption.
Infared LEDs fornight vision,more convenient.
Rainproof cover design, antioxidative Outdoor Unit with piano bakes lacquer panel.
25 kinds of rings for selection.
Intercom between the monitors is available.
The Volume, brightness and contrast can be adjusted.
Piano bakes lacquer panel design on indoor unit, more fashionable and luxury.
Hands free intercom,one-button touch makes perfect experience.
Support maximum 1 outdoor unit with 4 indoor units and 2 outdoor units with 4 indoor units.
Detail shows:
A:This door phone intercom adopt advanced touch technology, the full touch panle brings more sensitive touchexperience.
B:The ultrathin LCD displayfeels light and convenient. Furthemore, the piano bakes lacquer panel also looks more fashionable, elegantand luxur
C:The Volume, brightnessand chromacan be adjusted to meet your need. Besides, there are 25 kinds of music ringsfor selection.
D:The built-in infared LEDsmake it available to see the vistor outsideat night or at dark. It benefits more for the home security
E:The back-hang designalso is one of the advantages, which make the monitor be installed more easily and convenient. It can be installed anywhere you want.
F:Thedisplay image in the monitor is very clearfor viewing, which will definitly meet the general use.
G: The outdoor camera is attached with a rain proof coverto prevent the water. You needn't worry about the outdoor camera would be wet in the rainy day.
H:Material: ABS plastic housing
1.Screen: 7" TFT
2.Resolution: 960 * 480
3.Camera: 1/3" CMOS  1000 TV Line
4.Camera lens: 3.6mm
5.Camera viewing angle: 92 degrees (adjustable)
6.Call duration time: 120 Seconds
7.Monitor duration time: 60 Seconds
8.Power consumption: Static state <0.5W, calling <10W
9.Power input: AC 100V-240V 50/60 Hz
10.Power output: DC15V
11.Effective distance: 200M(6×0.75M2)
12.Indoor monitor: 228 * 130 * 20m
13.Outdoor camera: 155 * 95 * 55mm
14.Package size: 275* 145 * 95mm
Package includes:
1 * Outdoor camera
1 * Indoor monitor
1 * AC adapter
1 * 5m 6-core Connection cable
1 * 2-core Connection cable
1 * Package of screws

1 * User manual - English
