Product Details

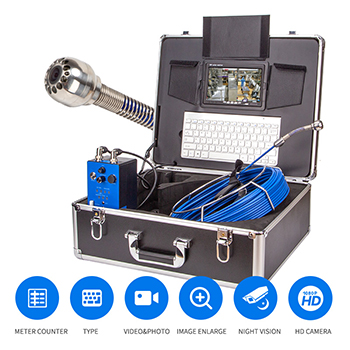

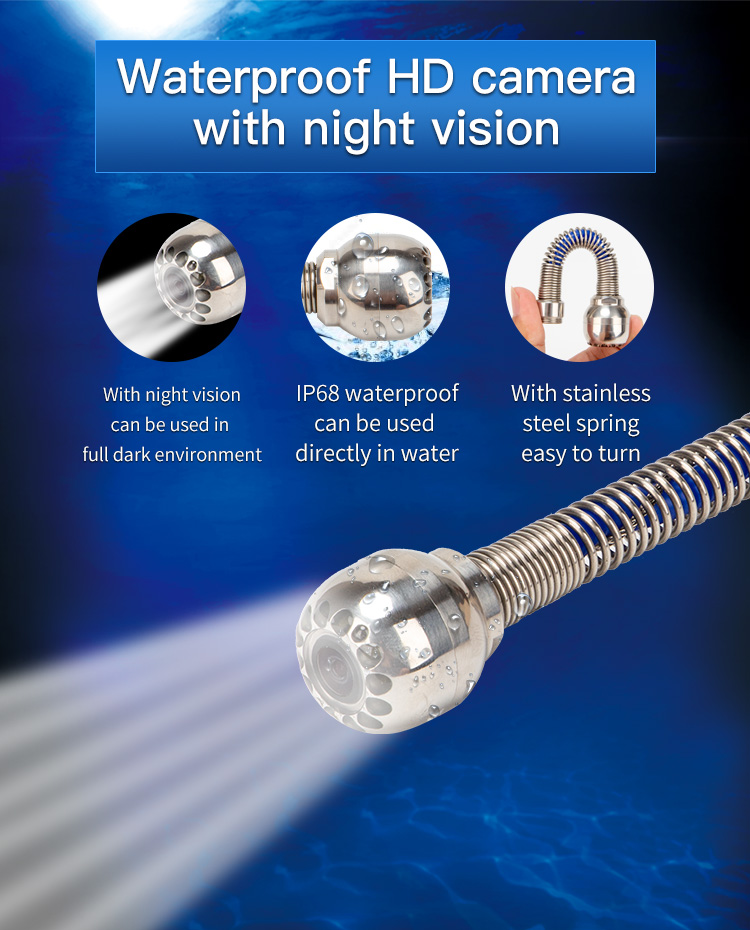

This Pipe Inspection Camera System is a cost-effective portable device designed to deliver high quality video images for a wide range of applications including; sewers, building ducts/piping, wells and power plants. The camera head itself contains 12 adjustable white LED lights to illuminate the inspection area with a flexible spring-coiled joint to easily navigate corners.

Feature:

7" TFT Monitor

25mm Ball Shapped Camera Head.

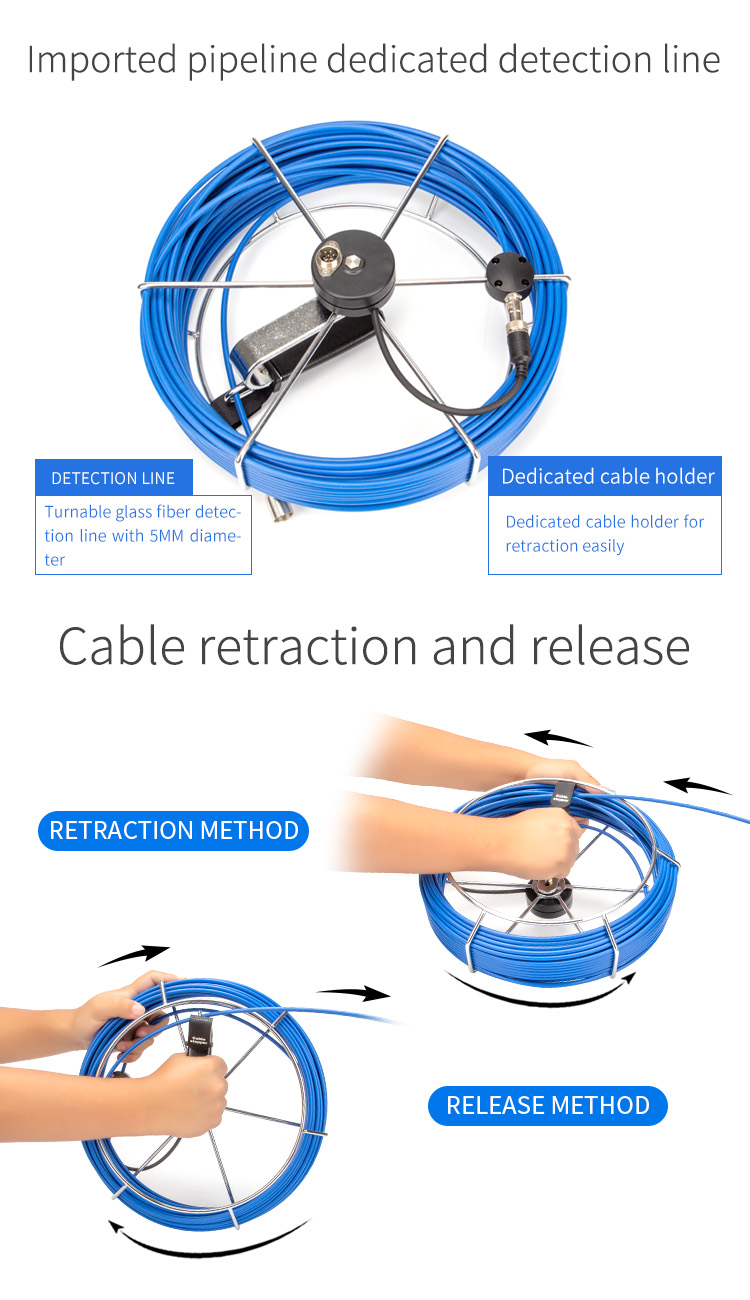

Φ5mm x 20m Fiberglass Cable

SD Card Record, HD DVR

Support U-disk, SD card, keybords

ABS Box For Easy Transportation

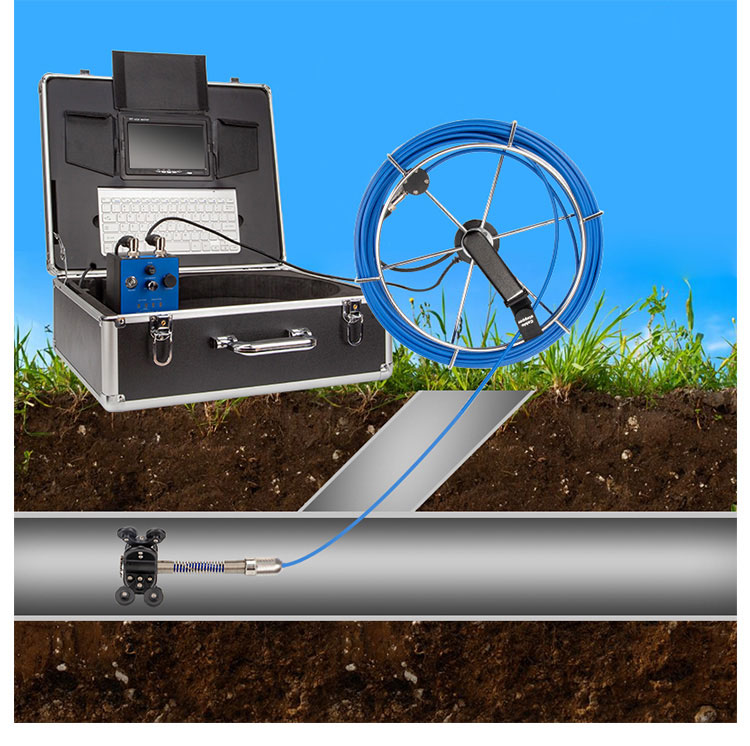

Widely Used In Industrial Pipelines, Underground Drain / Sewer Inspections, Water Course Study, Etc.

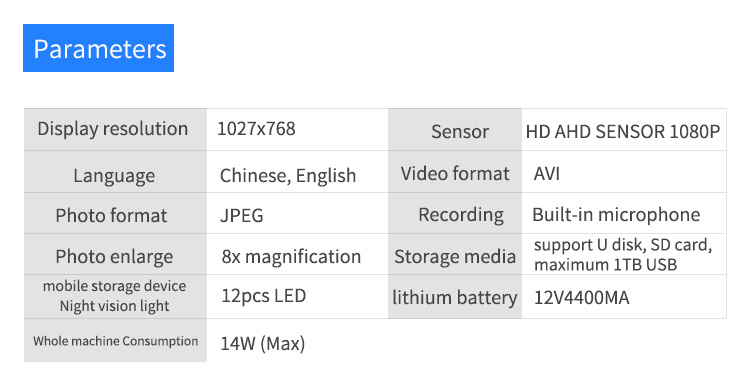

Specifications:

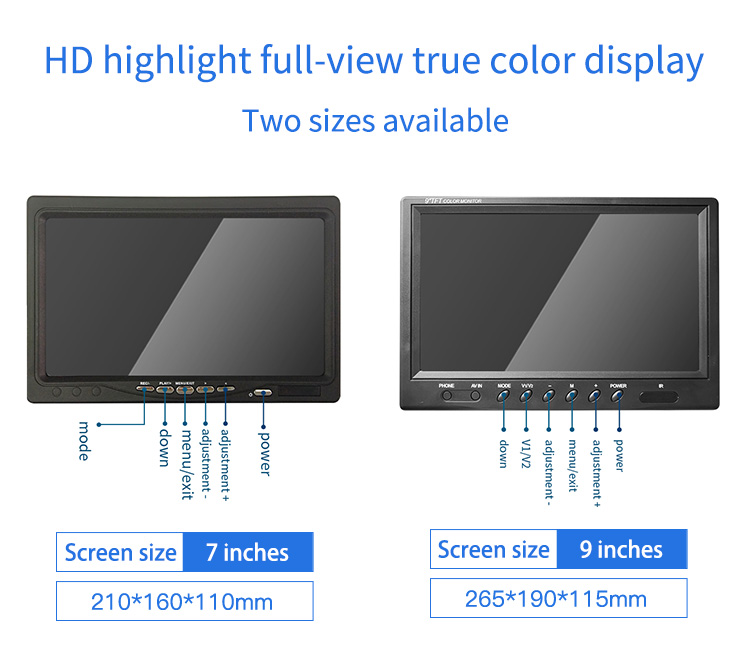

Screen Monitor Size	7 inch HD color LCD screen
Screen Display Ratio	16:9

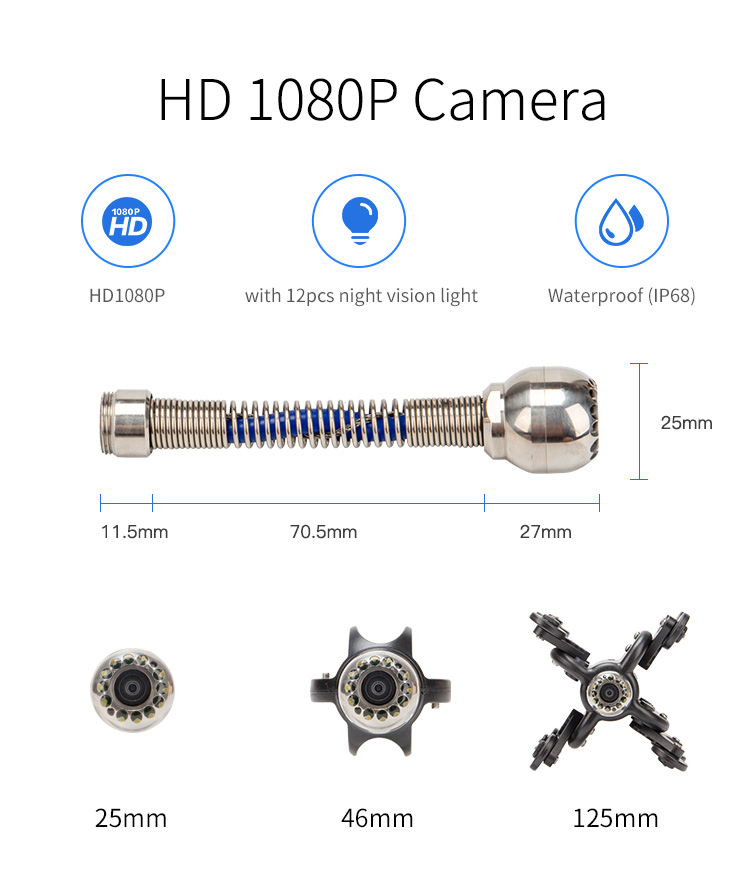

Camera Head Size	Φ25mm x 110mm
Camera Light Source	12Pcs LED lighting adjustable
Camera Viewing Angle	120°
Storage	support U-disk, SD card (Max: 1T)
Video In	1CH HD video in
Video Out	Composite video signal output
Cable Length	20M
Wire Material	Fiberglass Rod
Cable Diameter	5MM

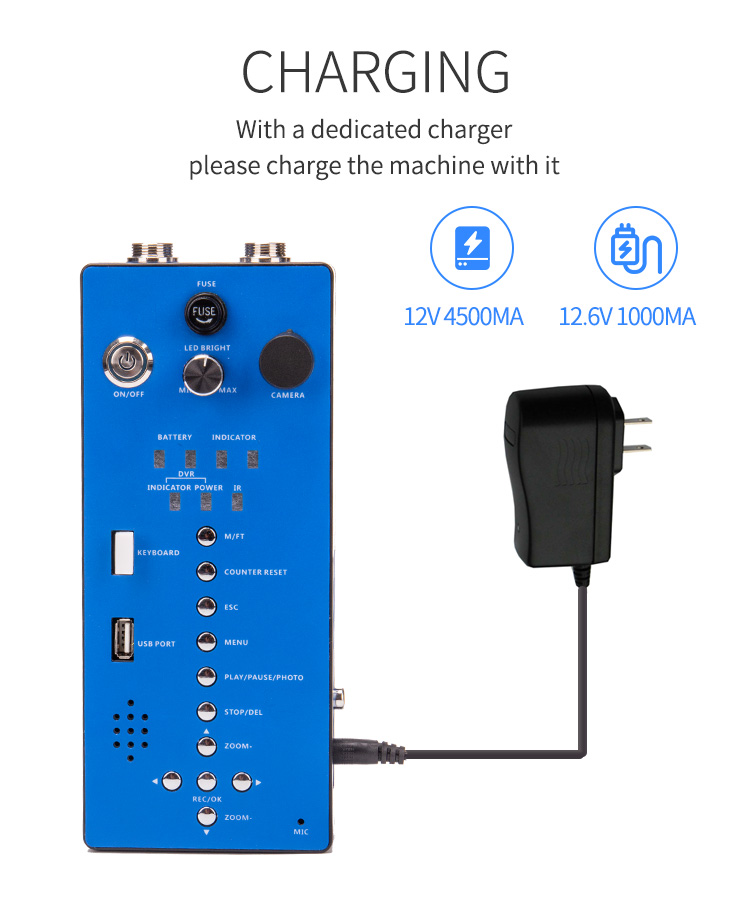

Charger	AC100-240V DC12V
Use Time For Battery	About 6 hours
Bracket Size	45mm/125mm
OSD	Support wireless and wired keyboard
Remote Control	for DVR control box
Switchboard Net Weight	7.8KG

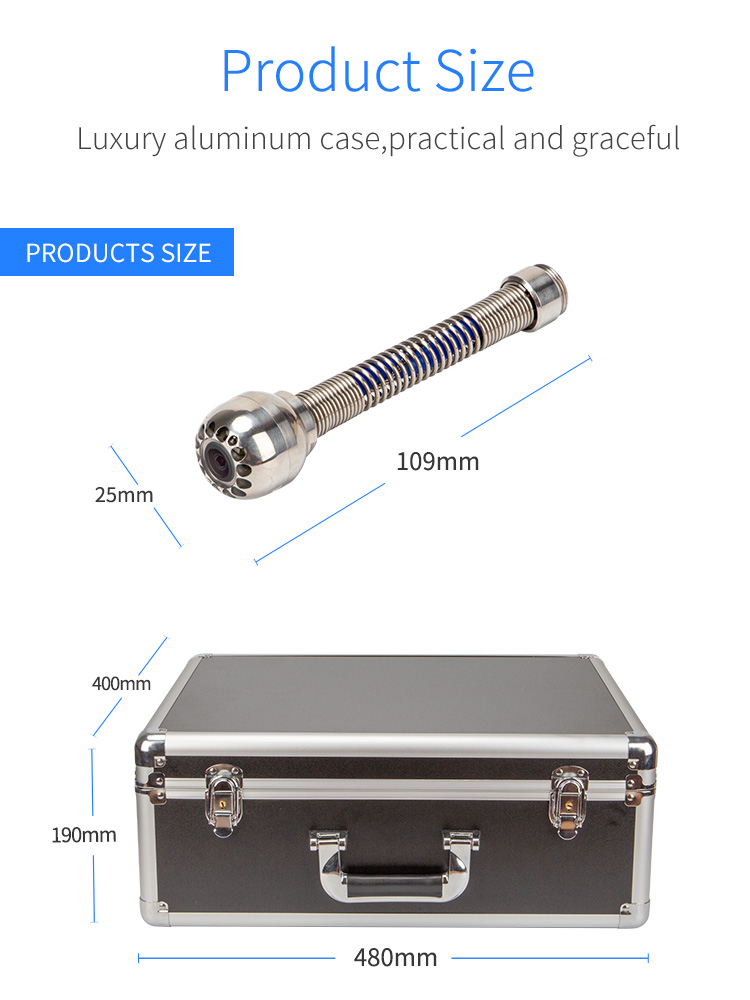

ABS Box Size	480 x 400 x 190MM

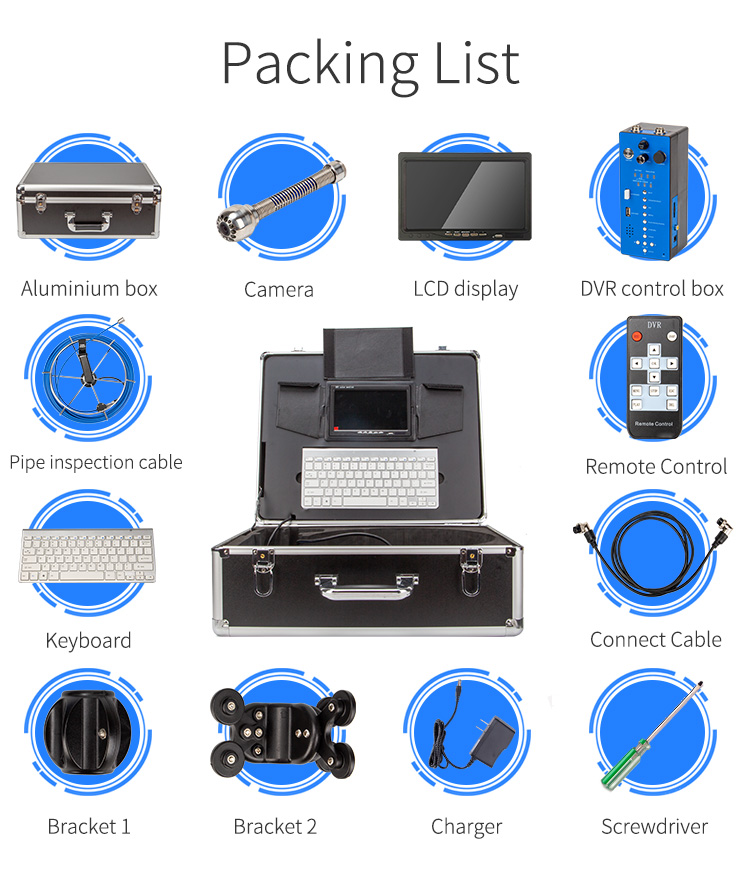

Package Included:

1 x Camera

1 x Monitor

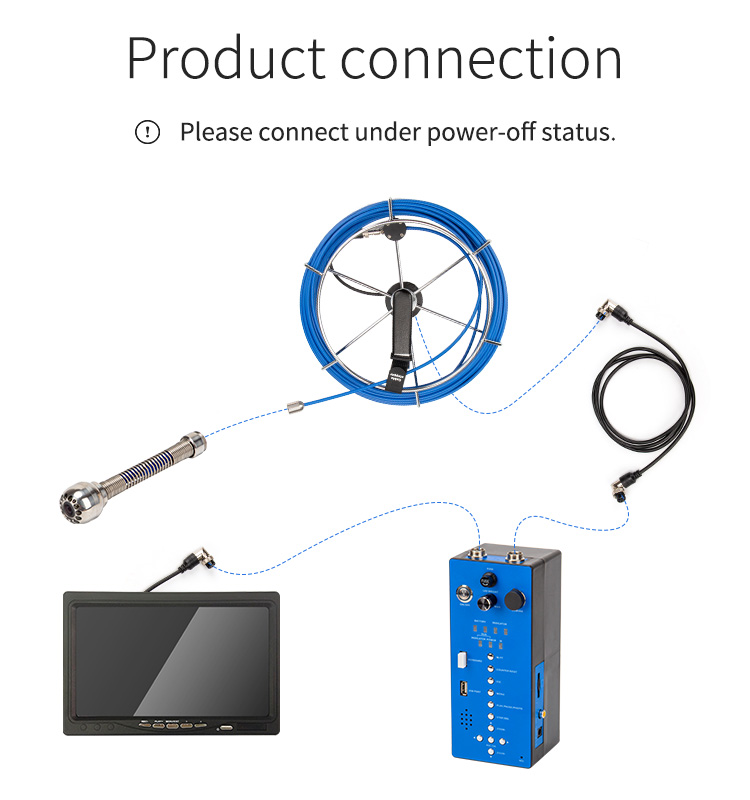

1 x Connect Cable

2 x Bracket

1 x Remote control

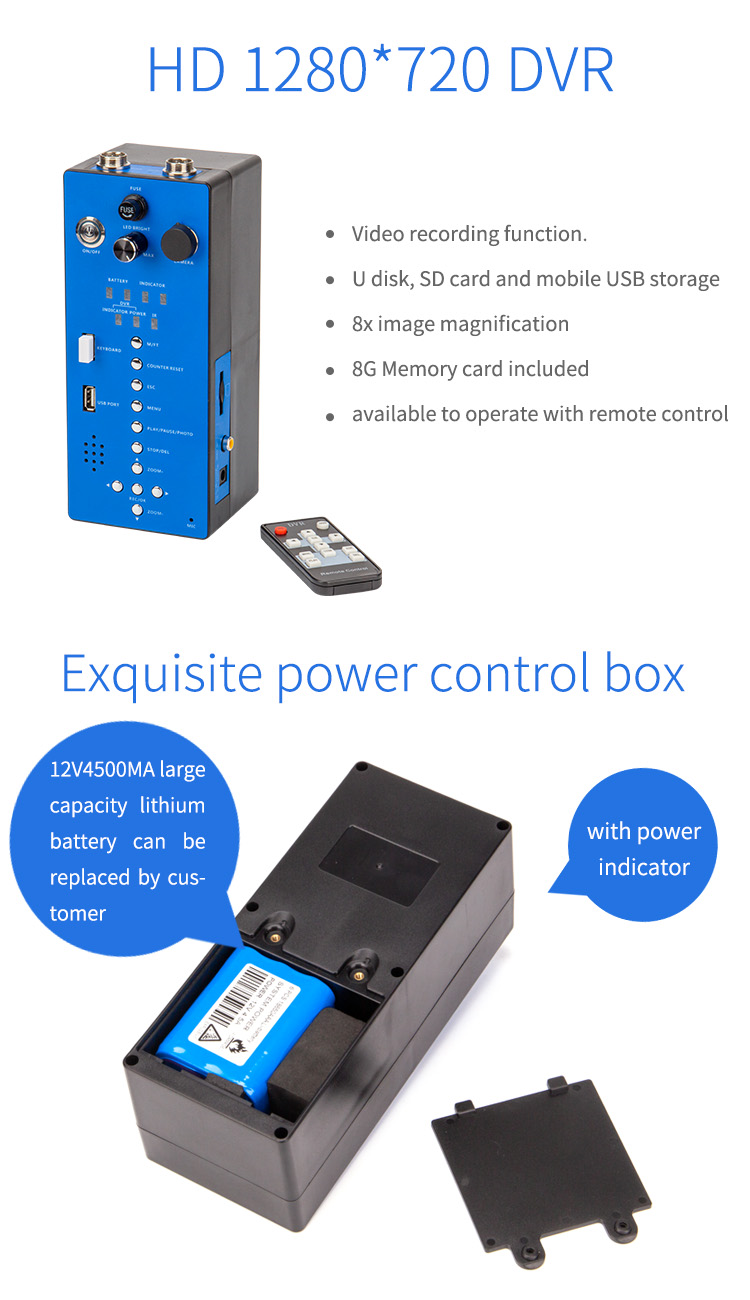

1 x DVR Control Box

1 x Keyboard

1 x Screw Driver

1 x 20m Cable Reel

1 x Charger
