Product Details

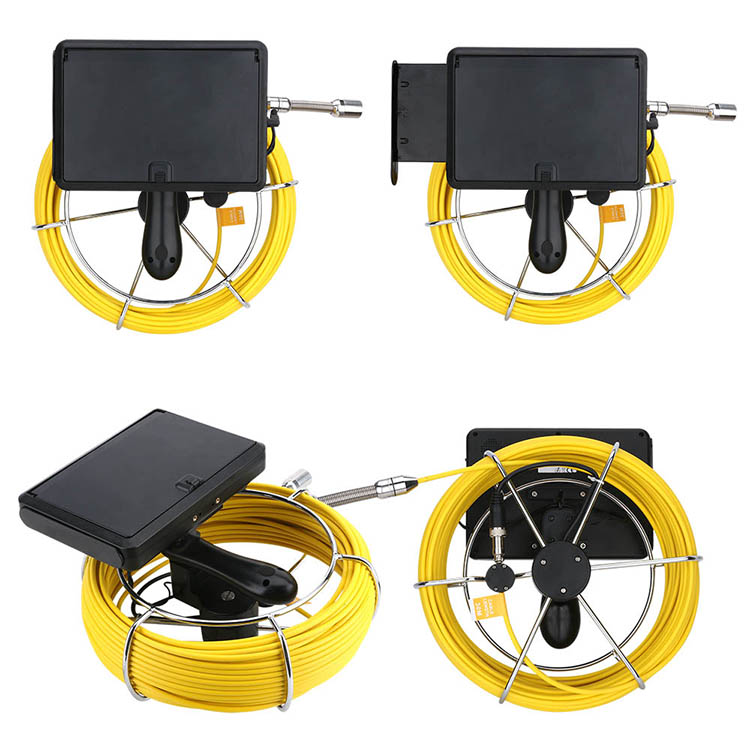

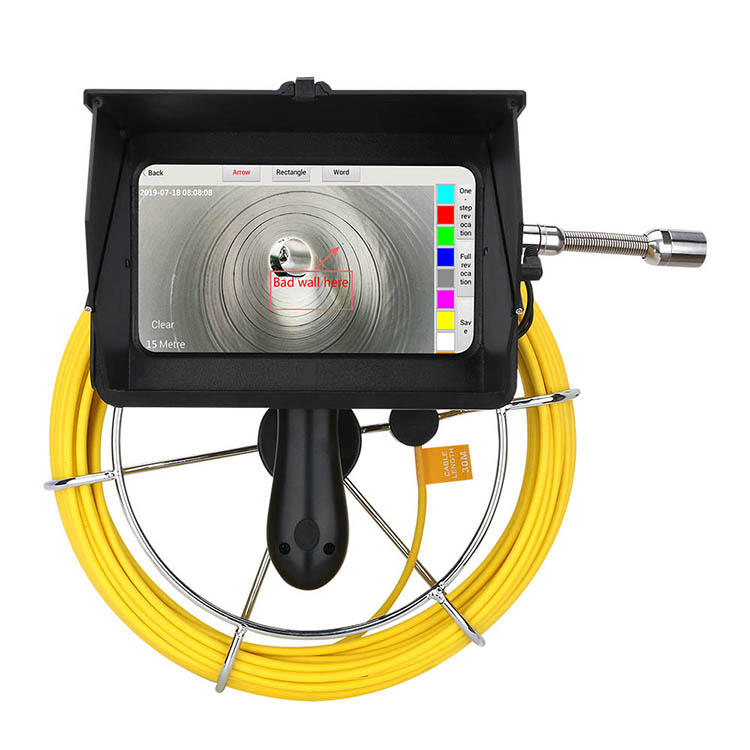

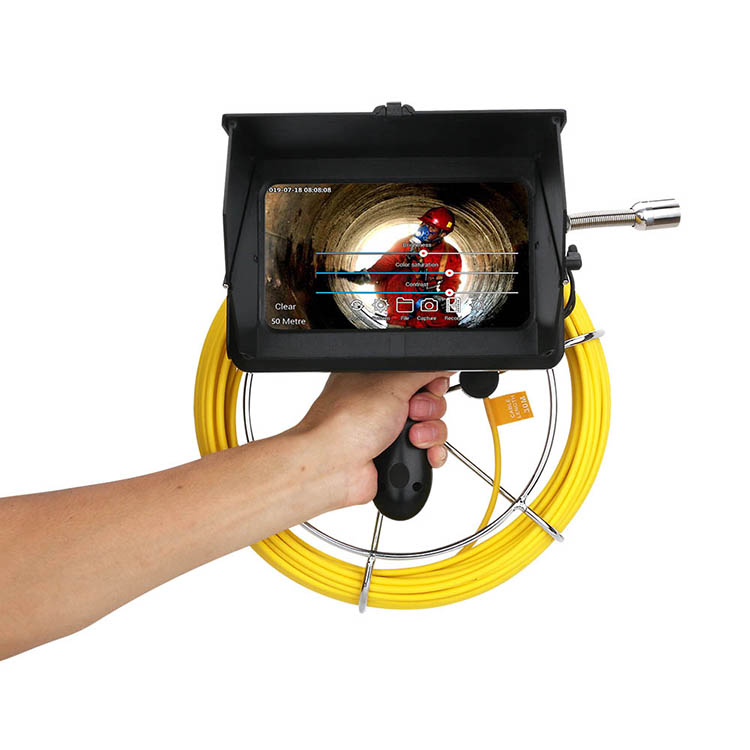

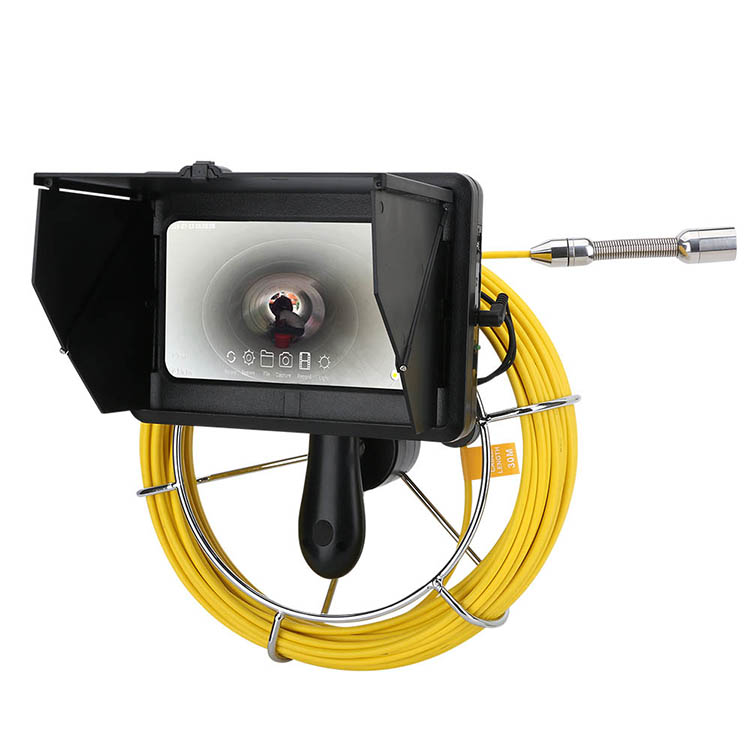

Handheld Industrial Pipe Sewer Inspection Video Camera with Meter Counter / DVR Video recording / WIFI wireless


This Pipe Inspection Camera System is a cost-effective portable device designed to deliver high quality video images for a wide range of applications including; sewers, building ducts/piping, wells and power plants.
This product is suitable to inspect the pipeline, sewer, air duct, tank, underwater and others dark environment, check the internal cracks, corrosion, weld, plugs and other unusual circumstance.





Specification:
Camera and cable:
Sensor Resolution :1/3 CMOS AHD 1080P

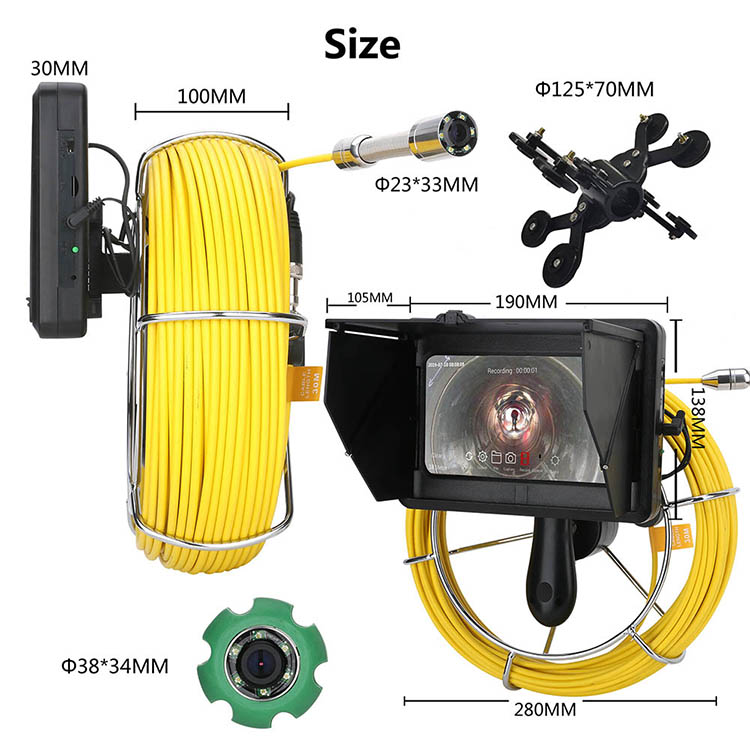

Camera Diameter:23MM
Camera Diameter:23(MM)*34(MM)
Depth/Material: 10M/20M/30M/40M/50M (optional)/fiber tube(diameter: 5MM)
LED: 6pcs 6W LED(Brightness can be adjustable)
Angle: 145 degree
Camera Material: stainless steel
Waterproof Level: IP68

Monitor:
Size:7 inch Capacitive touch screen
Display Resolution: 1024*600
Function: Video Record/Audio Record/Photo/ Chinese and English character input and arrow event record/Meters Counter (meter/inch optional)/Playback/WIFI hotspot
WIFI Hotspot distance: about 80m
Mobile APP: support 8 users
APP: Support Android & IOS
Record / Monitor Image: Color
Video Resolution: 1280*700
Photo Resolution: 1280*700
Event record photo resolution: 904*540
TF Card: Max support 32GB TF card; includes 8G TF card
Menu:Chinese /English Optional
Packing Size:400*310*185(MM)

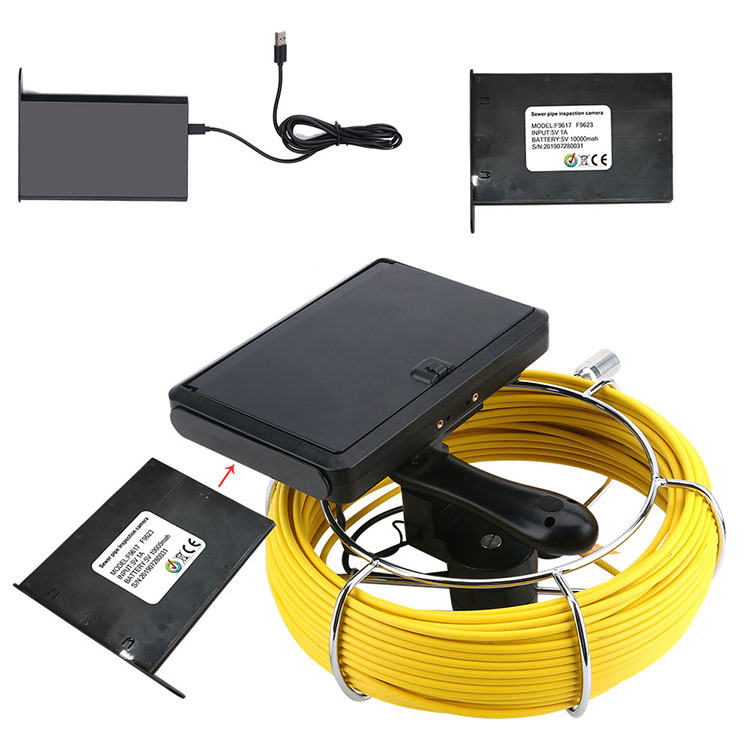

Power Bank:
Recharger: DC 5V 1000mA Support power bank,mobile phone recharger,
car recharger,computer USB port
Recharge time: about 10 hours
Battery capacity: lithium battery 3.7V 10000AH
Battery working time: about 6-8 hours

Aluminum box size: 400 *310 *185 (mm)
Package size: 410*318*185mm
